质料简介
Introduction

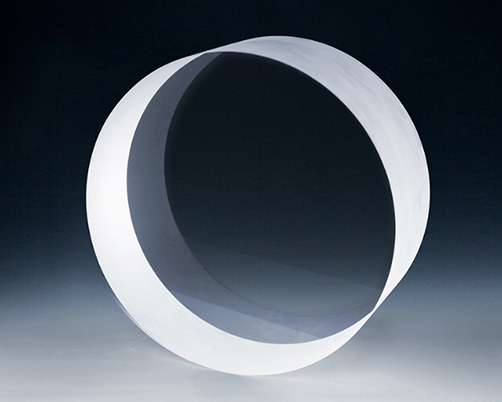

FNCL合成石英接纳有机硅的环保工艺制造产品
不含氯、无气泡、具有超高纯度
是现在半导体应用中最清洁的质料之一,,,,,,,,
其优异的透过率和耐辐照性能成为紫外波段应用的理想质料。。。。。。
Made by organic silicon with environmental protection process, FNCL synthetic quartz material is one of the cleanest material in semiconductor applications due to its characteristics of chorine free, no bubble and high purity. It is the ideal material for ultraviolet applications for its excellent transmittance and radiation resistance.

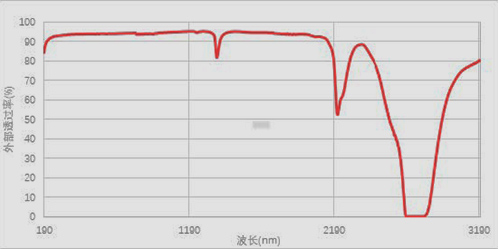

透过率
Transmittance spectral curve

外部透过率

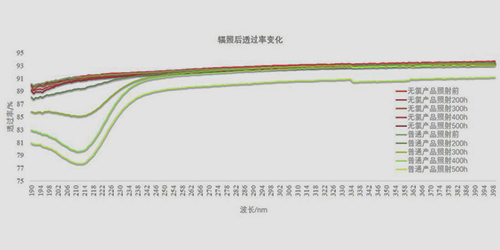

辐照后透过率转变
性能指标
Critical indicators
要害指标
金属杂质含量
氯含量
羟基含量
温升
激光损伤阈值(体损伤,,,,,,,,355nm)
量热法弱吸收
<0.1 ppm
< 1 ppm
800-1000 ppm
3℃ (8000W , 1200Hz , 150s)
16.033 J/cm?
0.3%-0.5% ( 193nm )
